Metal ceilings D0 | Plafometal

Product Benefits

Installation: standard and cost-effective solution
Opening: very easy through simple lifting
Acoustic: high sound correction, absorption coefficient αw up to 1

Associated System:

MESH system installed on T grid [PLAFOMETAL-EM-260]

Caracteristics & Performance

Acoustic absorption

αw up to 1 (NRC = 1.00) with the ALPHA PLUS range

Découvrez notre video "Les plafonds métalliques acoustiques" dans la rubrique Documentations/Videos.

Chemical resistance

Our metal ceilings are resistant to hypochlorite sodium 2.5%, hydrogen peroxide 6%, or ethanol 70% disinfectants (according to EN 12720 and ISO 11998 standards). Refer to the Maintenance page of the annexes for more details.

Réglementations

Indoor Air Quality

Class A+ for all products:

without finish
from the ALPHA PLUS range, with specific bagged insulation

Mise en oeuvre et entretien

Type of installation

Grid installation

Implementation

Tramée installation: hanger spacing 1200 mm with wall start at 300 mm and carrier spacing 1200 mm.

Disassembling for access to the plenum

Simply lifting the panel from the grid. Possibility of anti-lifting of the panel by adding CA113 brackets on the perimeter.

Colors & Dimensions

Colors and finishes

White (RAL 9003, 9010, 9016) Powder polyester coating
Metallic Grey (RAL 9006) Powder polyester coating
Black (RAL 9005) Powder polyester coating
180 RAL colors Powder polyester coating

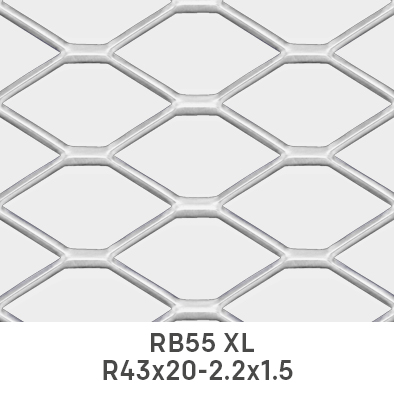

Meshes

Module dimensions

Width 600 mm
Length 600 and 1200 mm
Height according to mesh thickness (1.5 to 10 depending on type)

Cut outs and integrations

Customized factory cutting available on request.

Daily support

We offer our customers tailored support at every stage of a construction project. From the client's initial request to site supervision, Plafometal demonstrates its commitment to supporting its customers on a daily basis with tailored advice.

Learn more

Documents

D0
